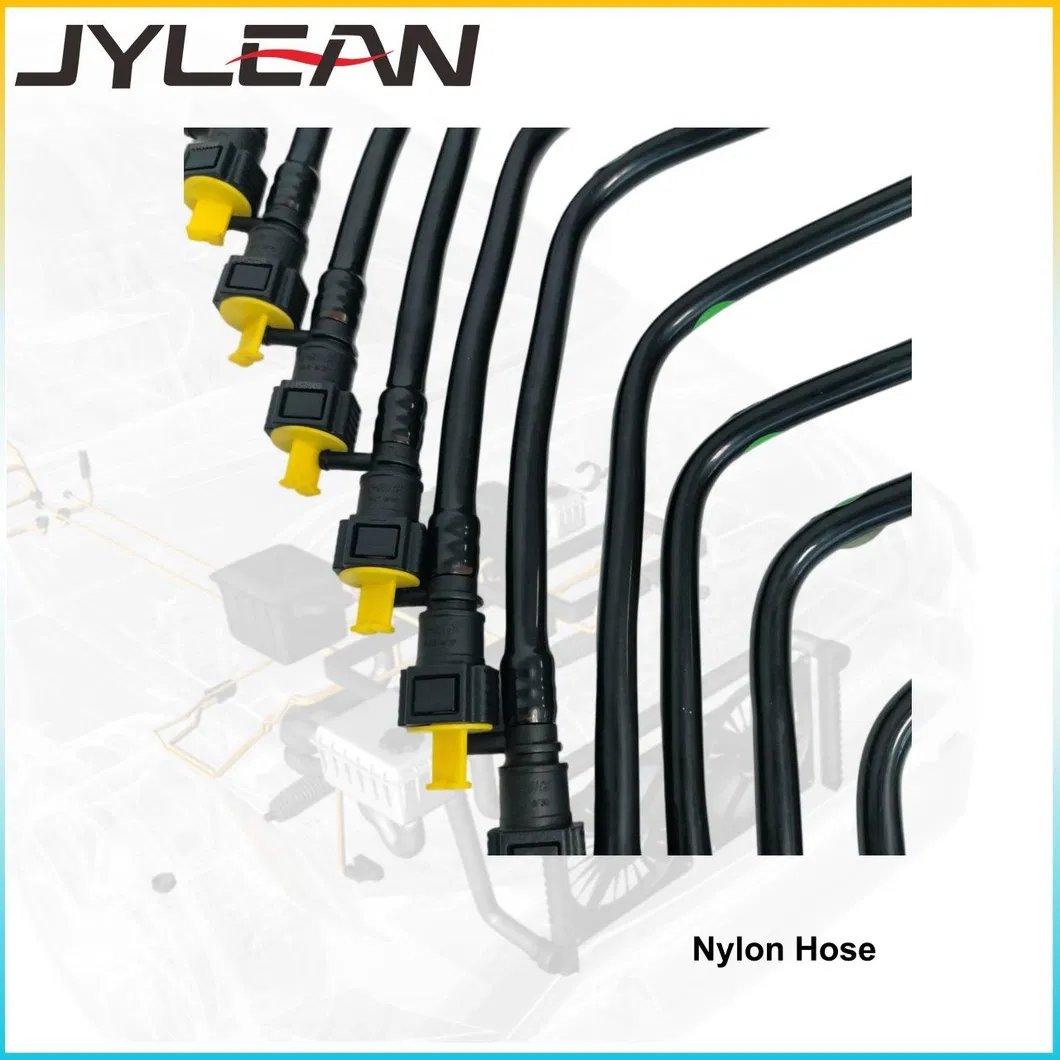

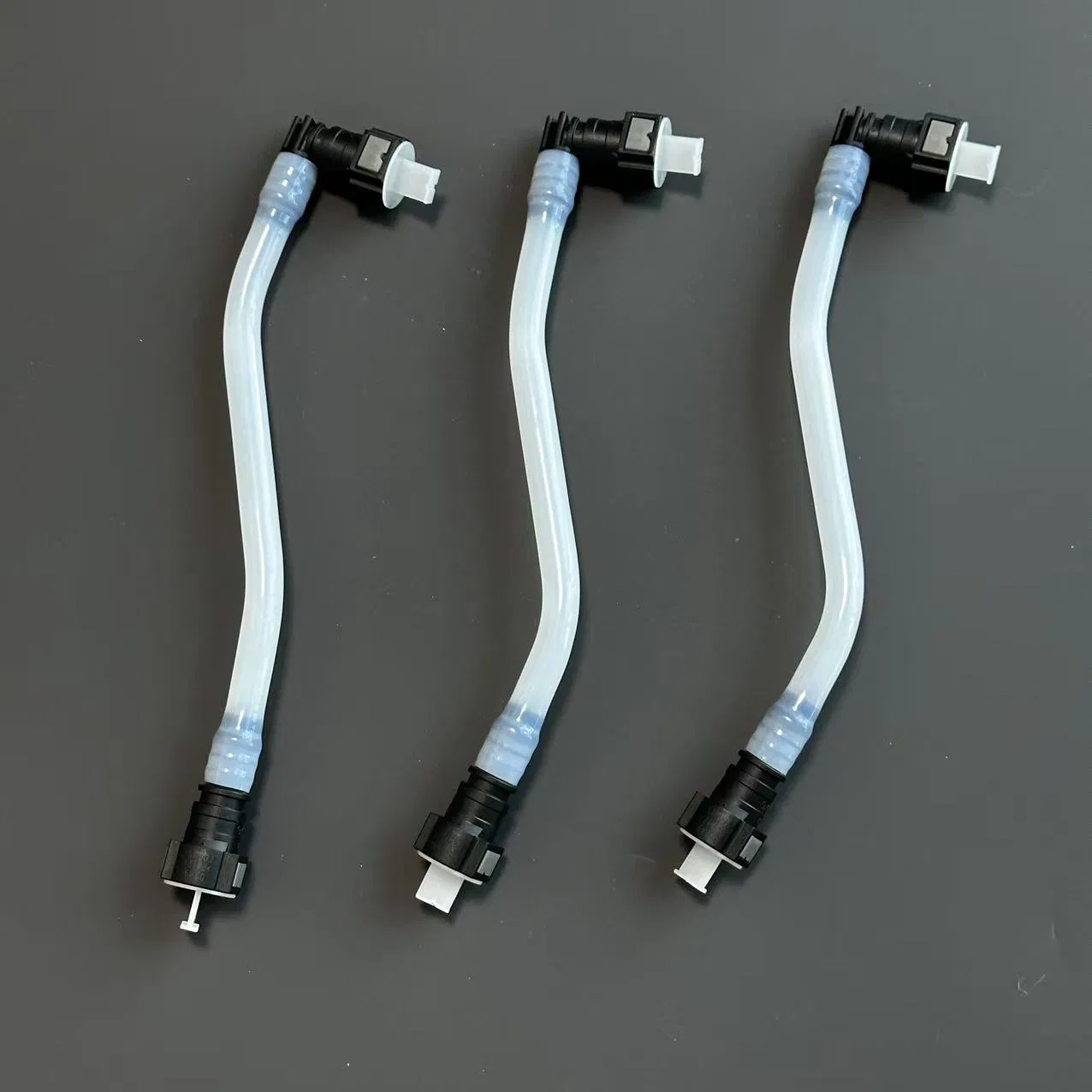

Multilayer nylon tubes are usually made of high-performance nylon materials (such as PA66, PA12, etc.), which have the characteristics of lightweight, high temperature, chemical corrosion resistance, and impact resistance.
Nylon 66: Nylon 66 fiber grade resin and engineering plastic resin products, suitable for automotive, aviation, high-speed rail and other fields, with high strength and high durability.
Nylon 12: Nylon 12 resin, known for low density, low temperature toughness and chemical resistance, especially suitable for new energy vehicles, submarine cables and other scenarios.
Multilayer nylon tubes are mainly used in industrial scenarios that require complex performance combinations:

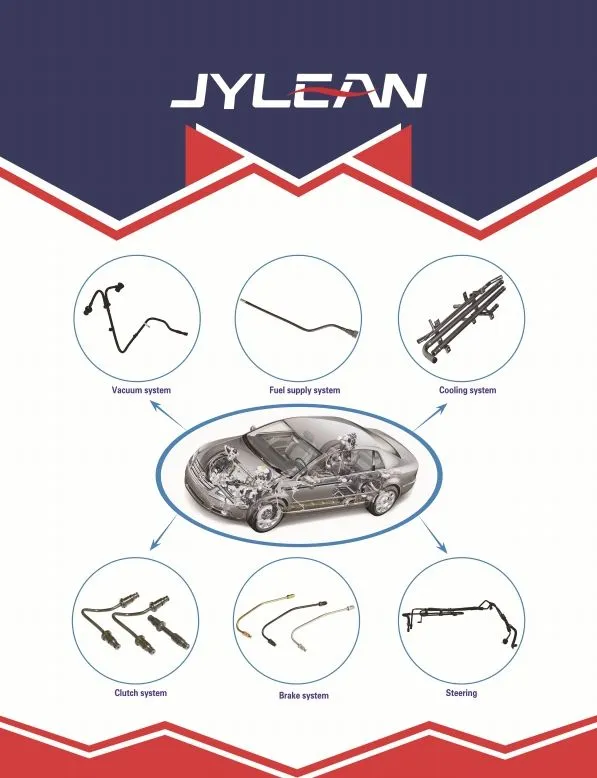

Automotive field: Nylon pipe products are widely used in new energy vehicle fluid pipelines, such as cooling in thermal management system, battery packaging pipe, etc., to meet the needs of lightweight and high temperature resistance.
Multi-layer structure design: Improve overall performance by combining different material layers, such as nylon with rubber or metal. For example, traditional rubber and metal pipes are replaced with nylon pipes in the thermal management system of new energy vehicles to achieve a balance between lightweight and pressure resistance.
With the development of new energy vehicles and high-end manufacturing, multi-layer nylon tubes will evolve in the direction of higher performance and lighter weight. For example, the combination of nylon 66 with carbon fiber composites may further optimize pipe strength and temperature resistance.
| Parameter Name | Parameter Description / Value | Parameter Name | Parameter Description / Value |
|---|---|---|---|
| Product Name | multilayer reinforced nylon pipe (PA12/PA6/PA66) | Working Pressure | 0.5Mpa-20mpa (according to reinforced layer material and number) |
| Structure Design | Three-layer structure: inner layer (corrosion-resistant nylon) + reinforcement layer (polyester fiber/aramid fiber) + outer layer (wear-resistant nylon) | Blasting Pressure | ≥ 2 times working pressure |
| Application Scenarios | Automotive braking system, pneumatic tools, hydraulic system, industrial fluid transmission | Withstand Pulse Pressure | ≥ 1 million cycles |
| Inner Diameter (ID) | 4mm / 6mm / 8mm / 10mm (customized) | Operating Temperature | -40ºC ~ +120ºC (instantaneous temperature tolerance up to +150ºC) |
| Outer Diameter (OD) | 8mm / 12mm / 16mm / 20mm (adjusted according to thickness of reinforced layer) | Low Temperature Brittle Resistance | -40ºC to maintain flexibility, no cracking |
| Wall Thickness | 1.5mm-3.5mm (multi-layer composite) | Medium Resistance | oil (mineral oil, hydraulic oil), weak acid and alkali, ethanol |
| Bending Radius | ≤ 4 outer diameter (dynamic use) / ≤ 2 outer diameter (static use) | Connection Type | Quick insert, threaded, flange connection (suitable for various standards) |
Yes, we can produce by your samples or technical drawings.
Usually the sample is free of charge, but the customer has to pay the shipping fee.
30% by telegraphic transfer as deposit and 70% before delivery or against copies of documents.
FOB, CIF, EXW, CFR, etc.
Generally speaking, it takes 45 days. The delivery time depends on the items you order and the quantity.
Of course. We have 100% visual inspection and performance test before delivery.
