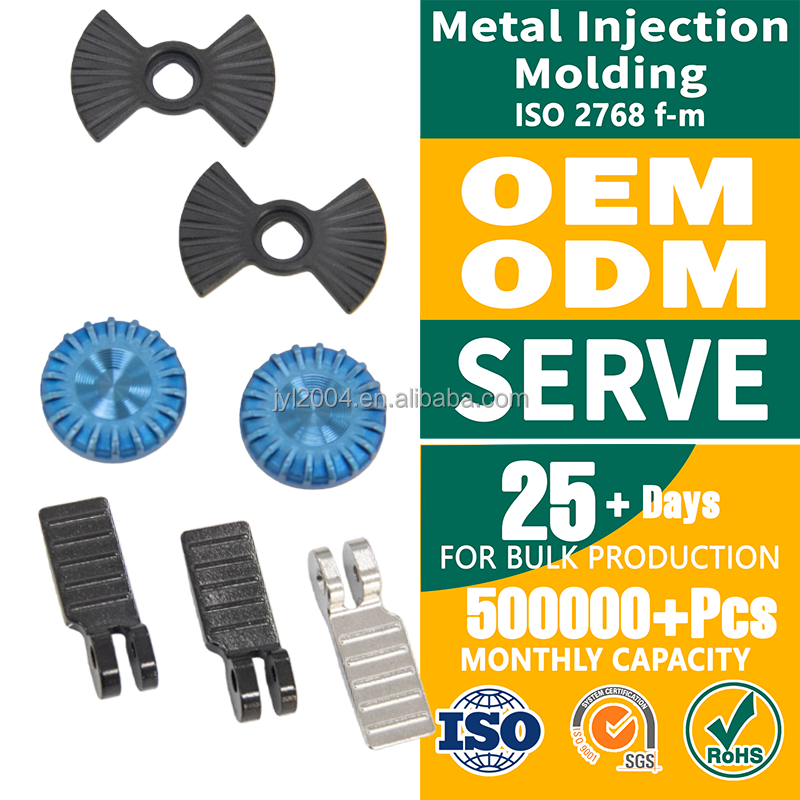

Custom Stainless Steel Lighting Components OEM Precision Injection Molded Metal Parts for LED and Architectural Lighting Systems

Product Description

Moulding Process Diagram 1
Moulding Process Diagram 2
Moulding Process Diagram 3
Moulding Process Diagram 4
Mould Details
Name Powder metallurgy injection molding
Mould core SKD61/DC53/SKD11
Mould base No. 45 steel formwork
Cavity Single/Multi 1*1,1+1,1*2,1+1+1.etc
Mode Gate Large gate / Narrow gate / Shallow gate
Ejecton system Straight top/Sloping top
Runner DC channel/S-shaped flow channel

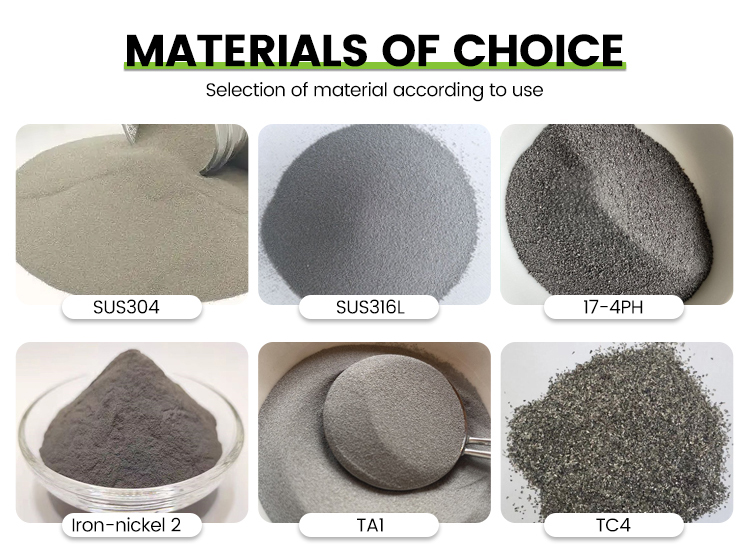

Metal material Stainless steel 304L/316L/17-4PH/420/430/440C; Titanium alloy TA1/TA2/TC4; Iron-based/Iron-nickel 2
Mould life 300,000-1,000,000 shots
Lead time 15-35days after deposit received
Specification Follow the 3D final drawing
Parts Production Details
Product material Stainless steel 304L/316L/17-4PH/420/430/440C; Titanium alloy TA1/TA2/TC4; Iron-based/Iron-nickel 2
MOQ 3000PCS
Packing details PP bags, blister packs, or custom packaging as needed
Shipping By sea or by air as customer requirement
Export Country Japan, Europe, USA, Mexico, Australia, Middle East, Korea, Asia etc
Typical Used For Locks, 3C products, medical accessories, beauty device accessories, game console accessories, eyeglass accessories, electric lighting accessories, machine parts, auto parts, and fishing gear accessories.
Surface treatment Powder injection molding processes such as mirror polishing, wire drawing, sandblasting, and grinding.
Surface coating PVD vacuum electroplating, nickel plating, zinc plating, chromium plating, blackening, QPQ plating, electrophoresis, baking paint.
Dimensional accuracy Dimensional tolerance is ±0.05 mm (e.g., 10 ± 0.05 mm).
Size range 0.1MM-120MM
Size and weight 0.1g-1000g (mainly suitable for precision small parts)
Processing method Customization based on provided drawings or samples
Showcase Product 1
Showcase Product 2
Showcase Product 3
Showcase Product 4
Showcase Product 5
Showcase Product 6
Frequently Asked Questions
Q How get a quote quickly?
Please send the 2D graphic file of the product (.dwg/.dxf/.pdf, etc.), and 3D drawing (.step/.ics), and at the same time tell us the material, process requirements, and other detailed parameters of the product as much as possible, so that we can provide you with a more accurate quotation.
Q What if you don't have a drawing of your product?
Please send the 2D graphic file of the product (.dwg/.dxf/.pdf, etc.), and 3D drawing (.step/.ics), and at the same time tell us the material, process requirements, and other detailed parameters of the product as much as possible, so that we can provide you with a more accurate quotation.
Q What will we bring to you?
Please send a message to our staff in the chat window, and tell me the material, size, parameters as detailed as possible of the product you need, or draw a simple drawing, or send photos of the product, our staff will draw the product drawings for you and confirm with you. Also you can send us samples.
Q What will we do to ensure the quality of your products?
  • High quality product
  • Reduce your cost more
  • Stricter Product Testing
  • Get free sample
  • Faster delivery and shipping
Q How get samples?
Please get touch with staff here. We support samples free, but you will pay for their postage at first. When you formally place a bulk order, we will offer you a discount as compensation.
