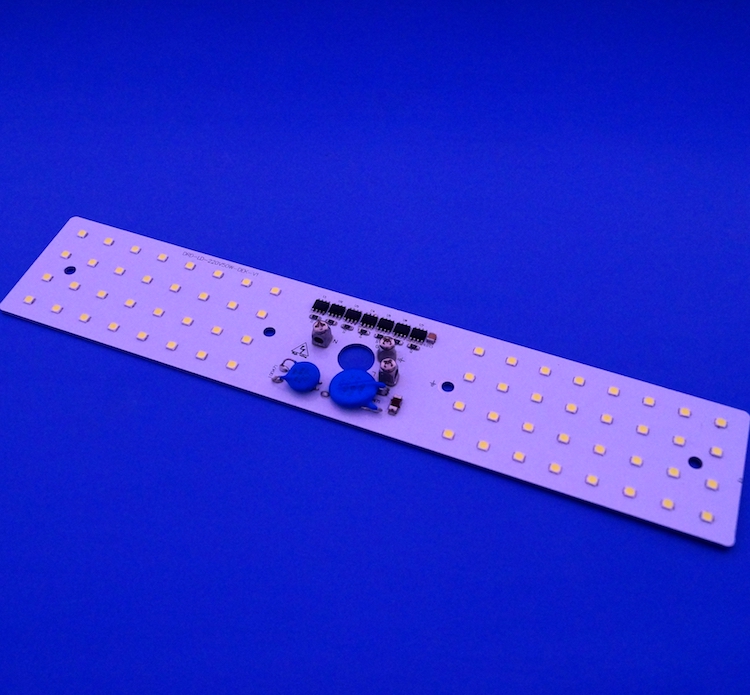

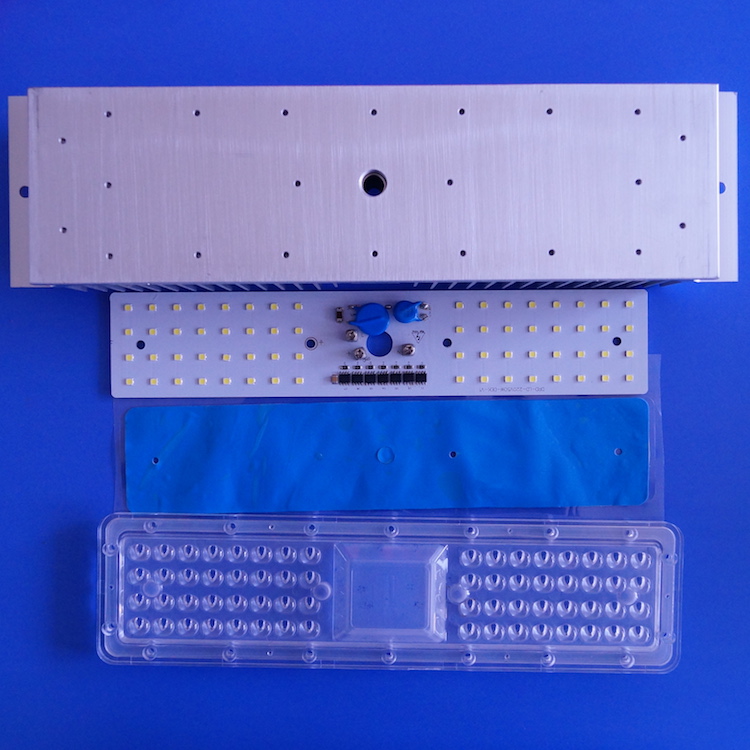

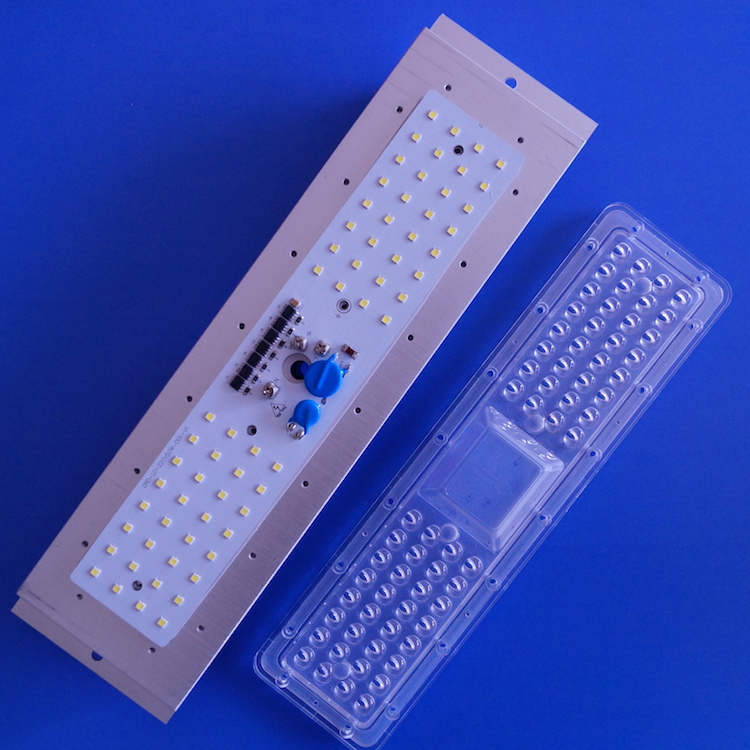

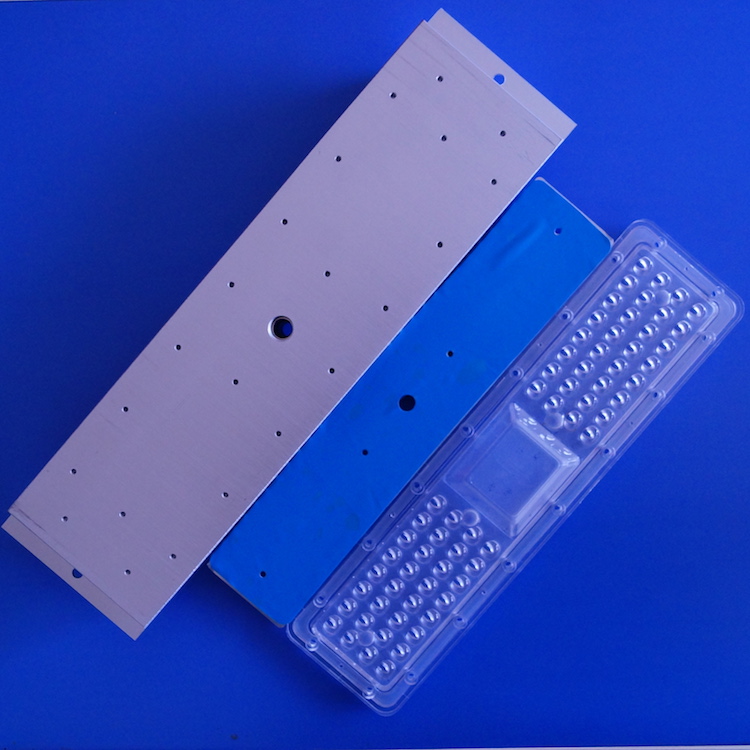

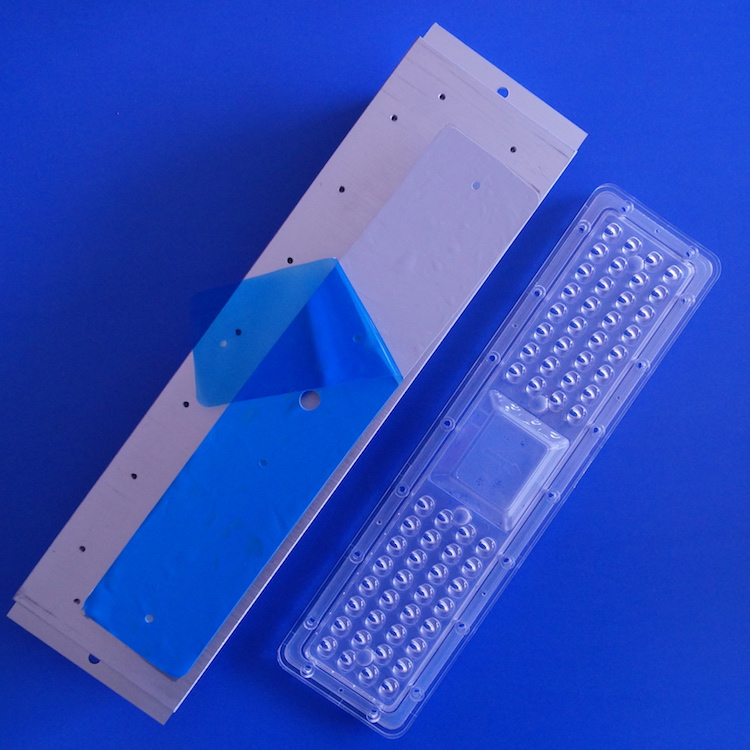

PH 3030 SMD Driverless AC LED Module 50W for Outdoor Lighting
Product Specifications
| Model | SUN-SL64H1-263X68-157X85 |

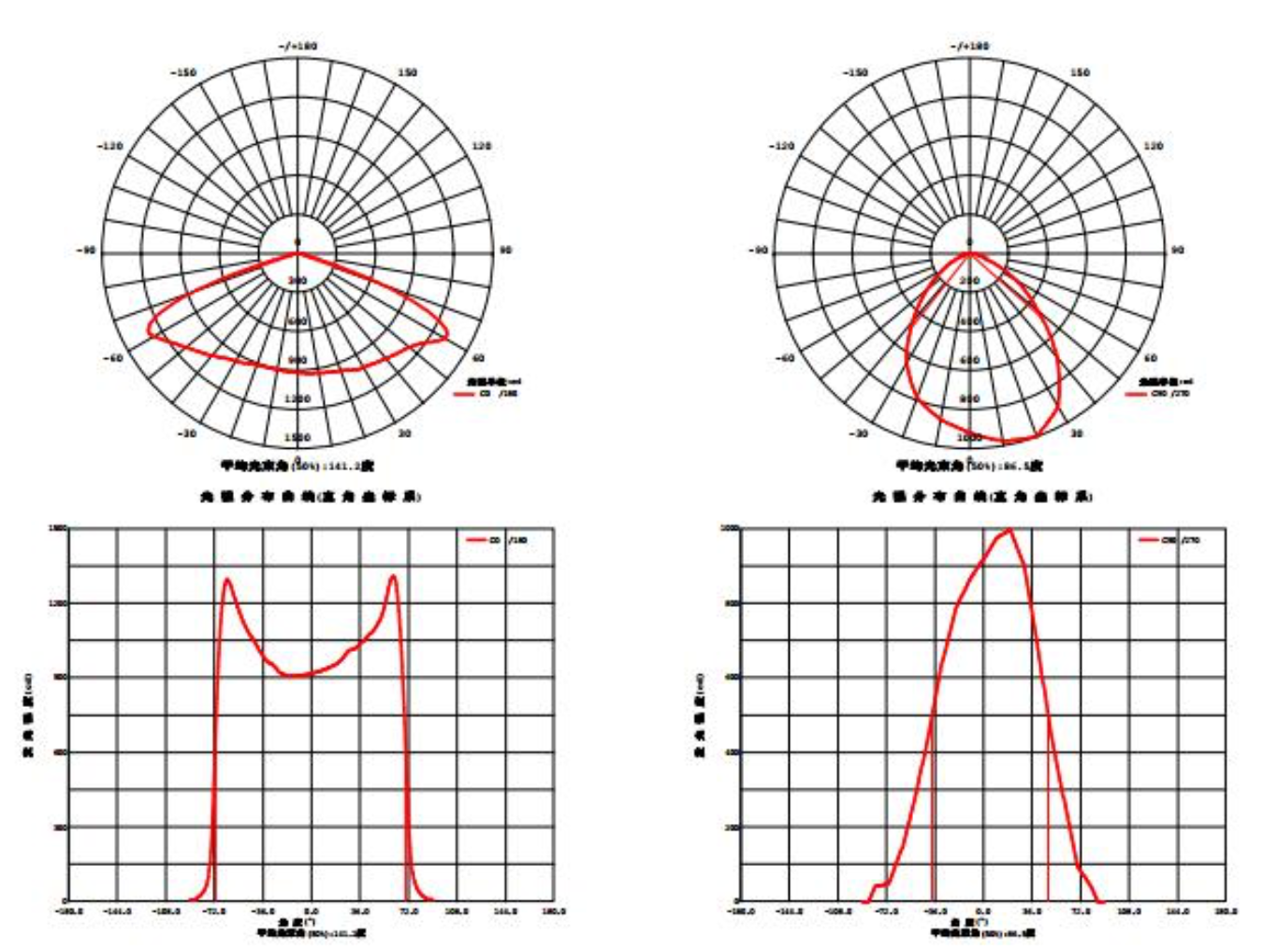

| Angle | 157x85 degree |
| Other angles | 25/60/120 degree |

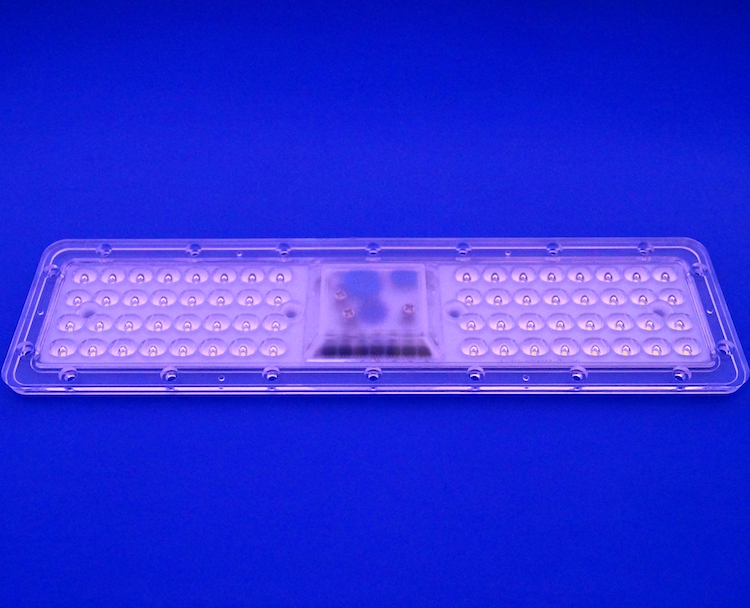

| Lens size | 263x68x10.1mm |
| PCB size | 244X48X1.5mm |
| AC Input | AC220V Driverless |
| LED Type | 64 led 3030 SMD |

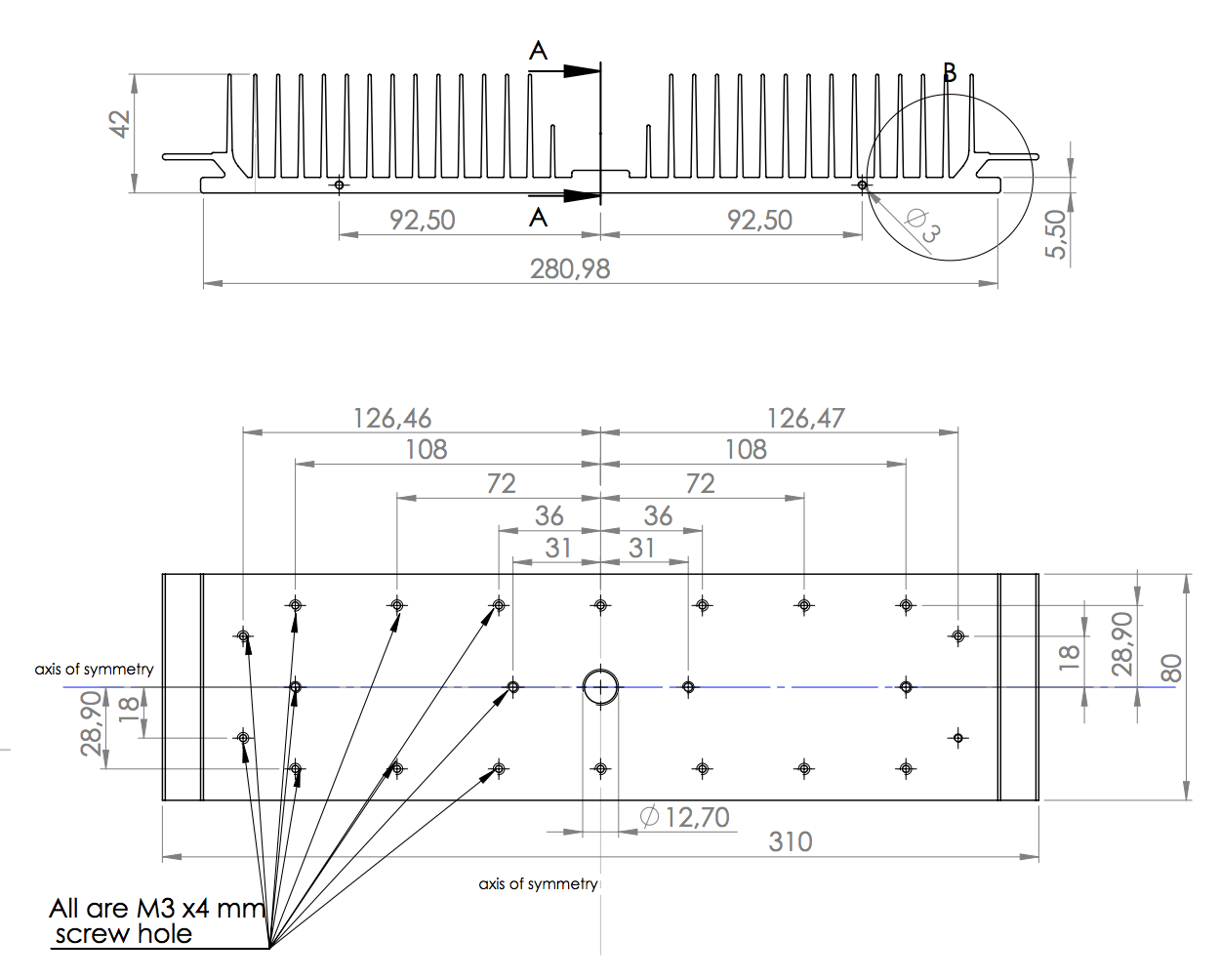

| Heat sink size | 280.98x82x42mm |
| Samples | Available |
Feature: Without any power supply to drive LED module, connect with 220V AC directly.
Product Features
- High Efficiency: No transformer drive, using linear constant current drive, AC input directly, conversion efficiency greater than 85%.
- Long Service Life: No electrolytic capacitors, ensuring stability in both ultra-low and high temperatures, preventing failure and burst issues.
- Over-temperature Protection: Unique protection mechanism reduces power automatically when temperature is too high, restoring normalcy once cooled.
- Moisture Resistance: Silicone moisture-proof treatment for increased protection.
- Standards Compliance: Complies with EMC and CE standards.
- Surge Resistance: Greater than or equal to 1000V; Insulation ESD withstand voltage DC3500V above.
Electrical Parameters
- Input Voltage: AC200-260V / 48-63Hz
- Insurance fuse: 2A
- PF (Power Factor): ≥ 0.9
- Efficiency: ≥ 85%
- Power: 48-53W (Design voltage of 220V)
- Surge resistant: 1500V

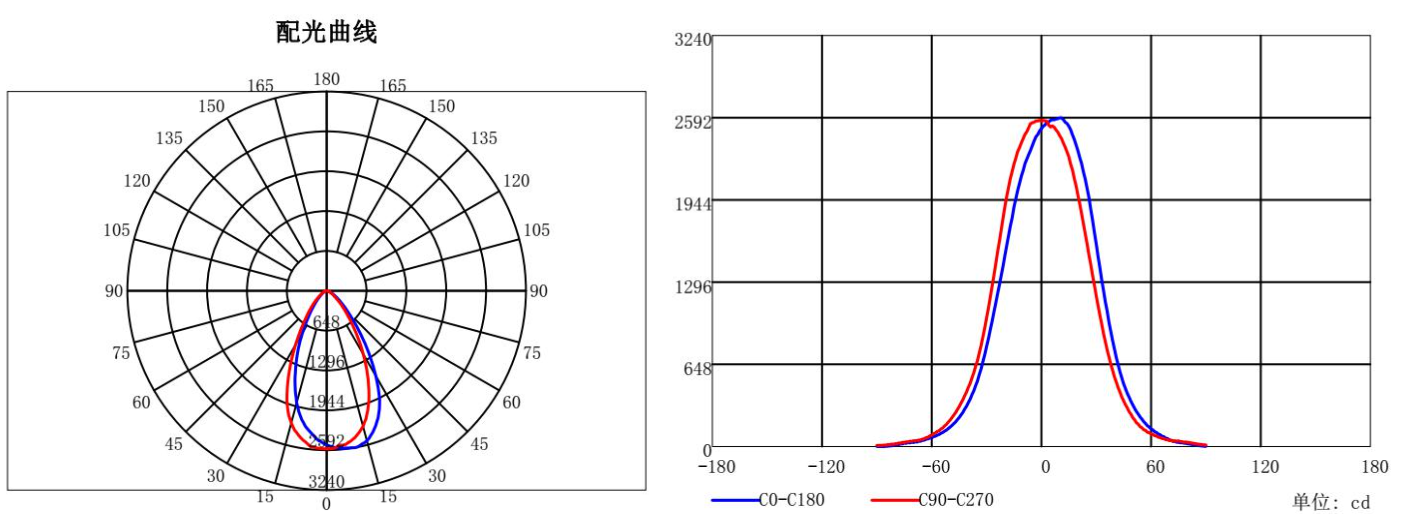

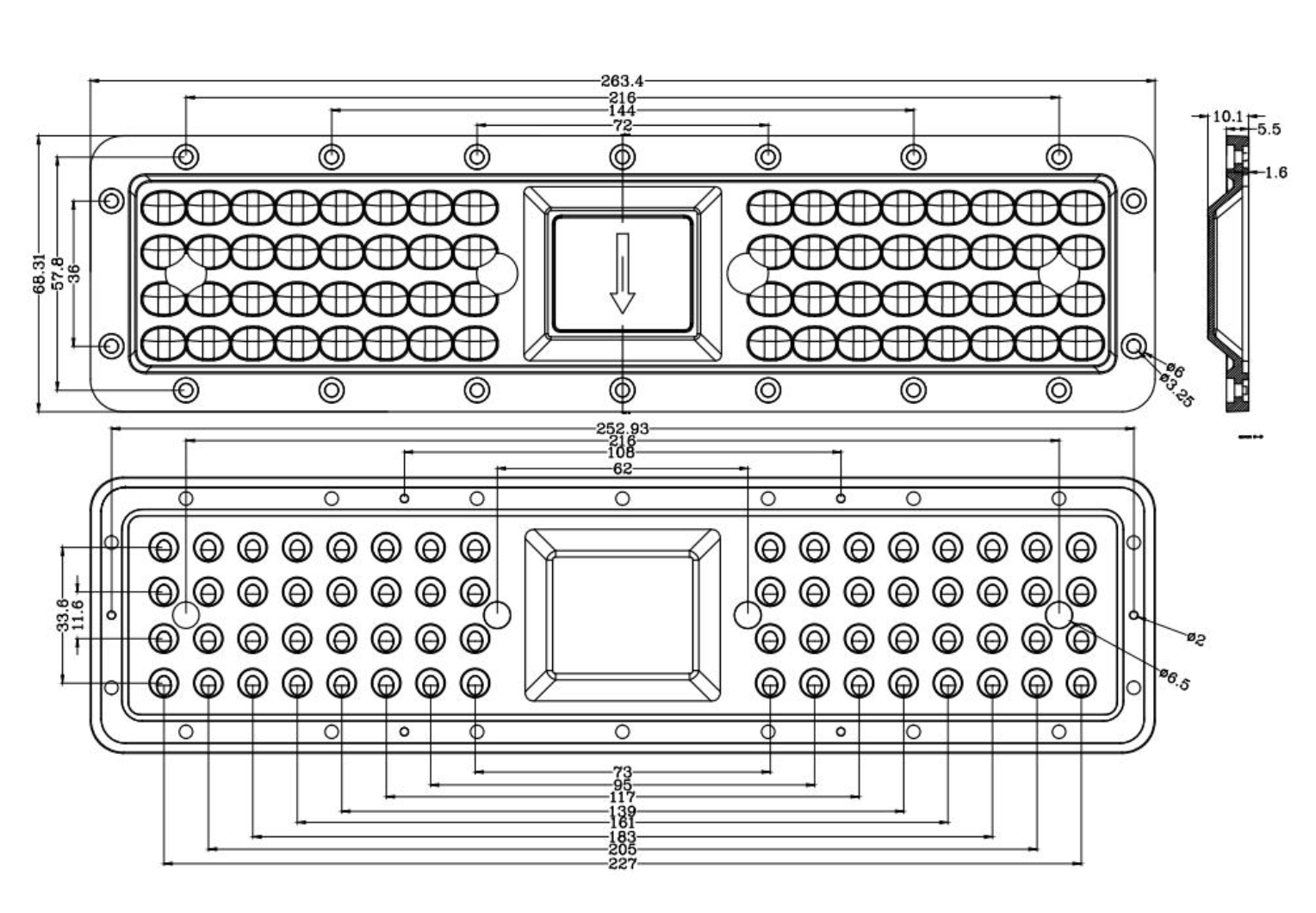

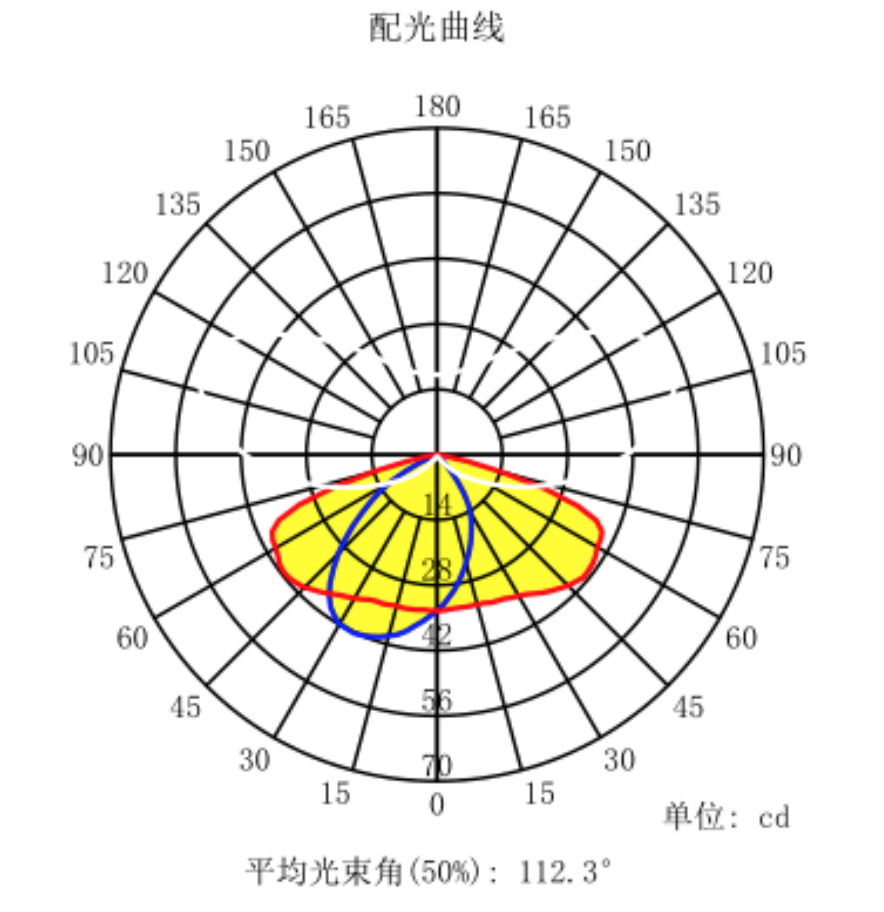

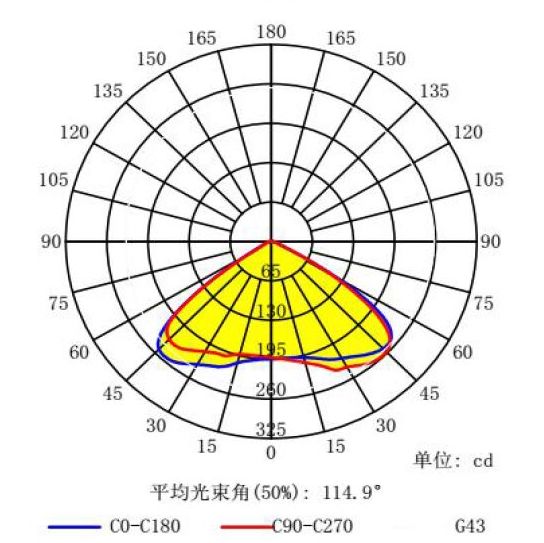

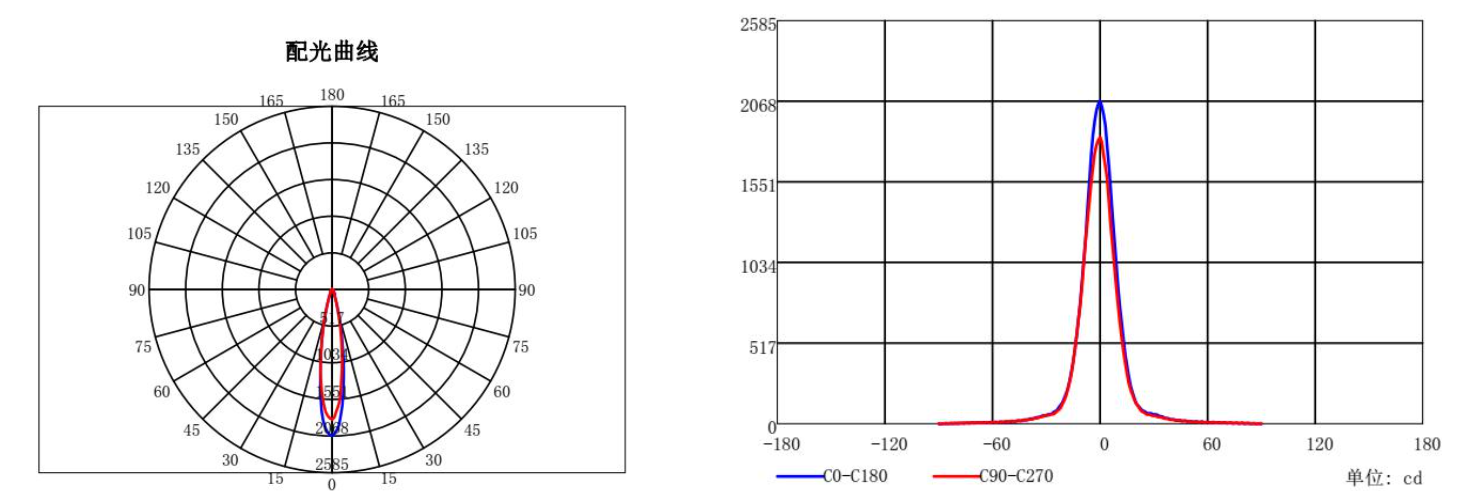

Drawings & Beam Angles

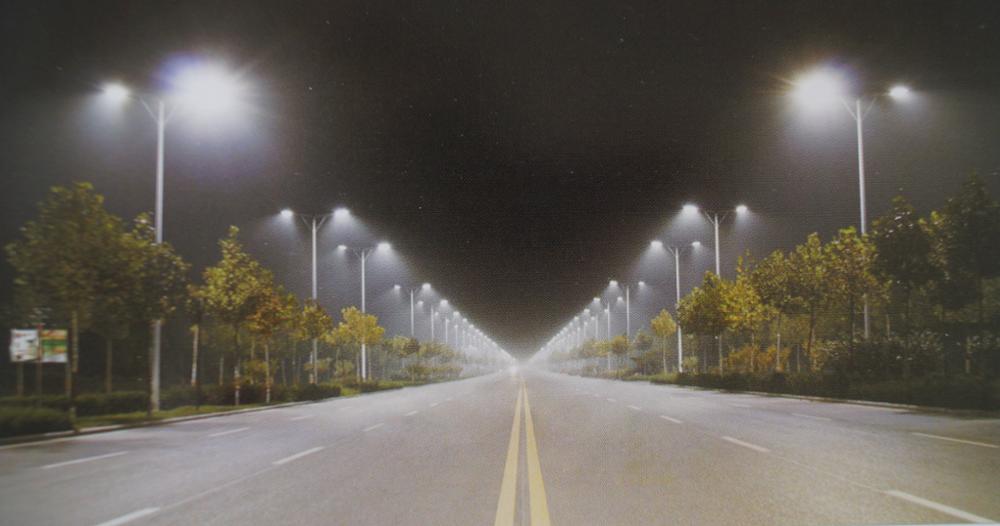

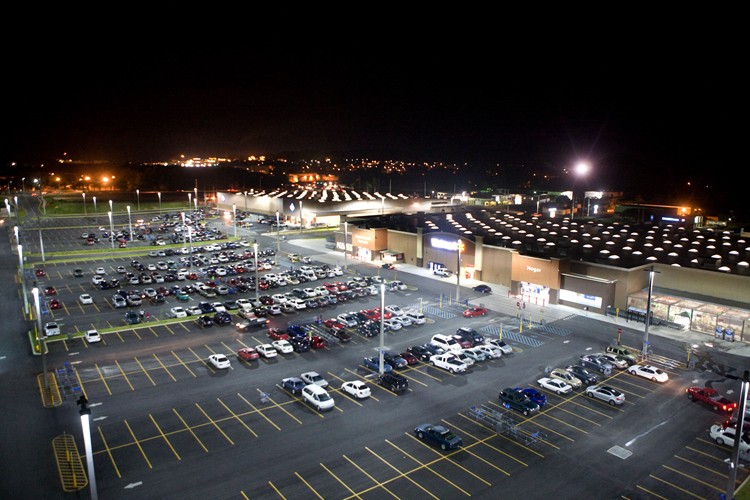

Heat Sink & Application
Frequently Asked Questions
1. Does this LED module require an external power supply?
No, this is a driverless AC LED module, which can be connected directly to 220V AC power.
2. What is the power rating of this module?
The power consumption is approximately 48-53W when operated at the design voltage of 220V.
3. Is this module suitable for outdoor use?
Yes, it features silicone moisture-proof treatment specifically designed for durability in outdoor lighting environments.
4. What beam angles are available for the lens?
We provide multiple options including 25°, 60°, 120°, and 157x85° to suit various lighting requirements.
5. Does the module have temperature protection?
Yes, it includes unique over-temperature protection that reduces power automatically if the temperature gets too high, and restores it when the temperature returns to normal.
