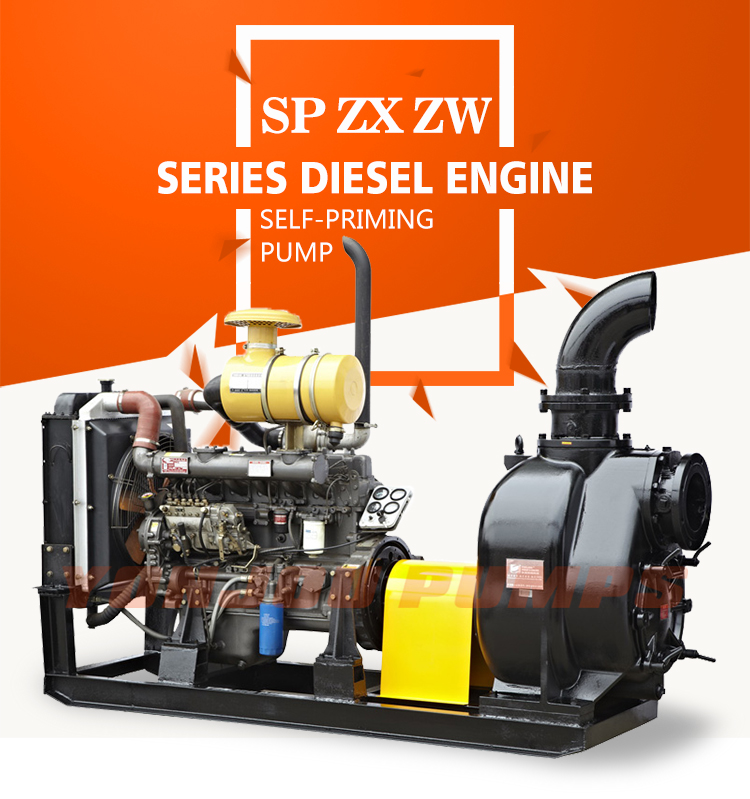

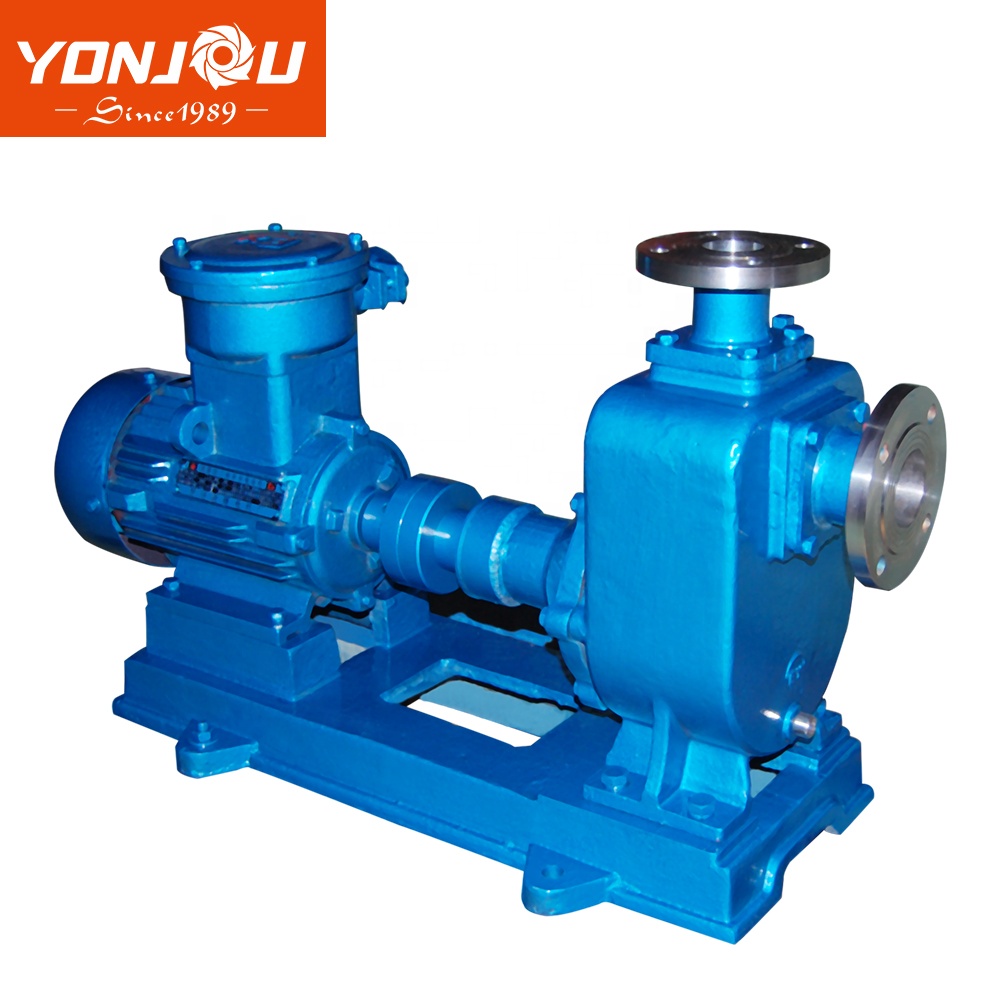

| Technical Specifications | |
|---|---|

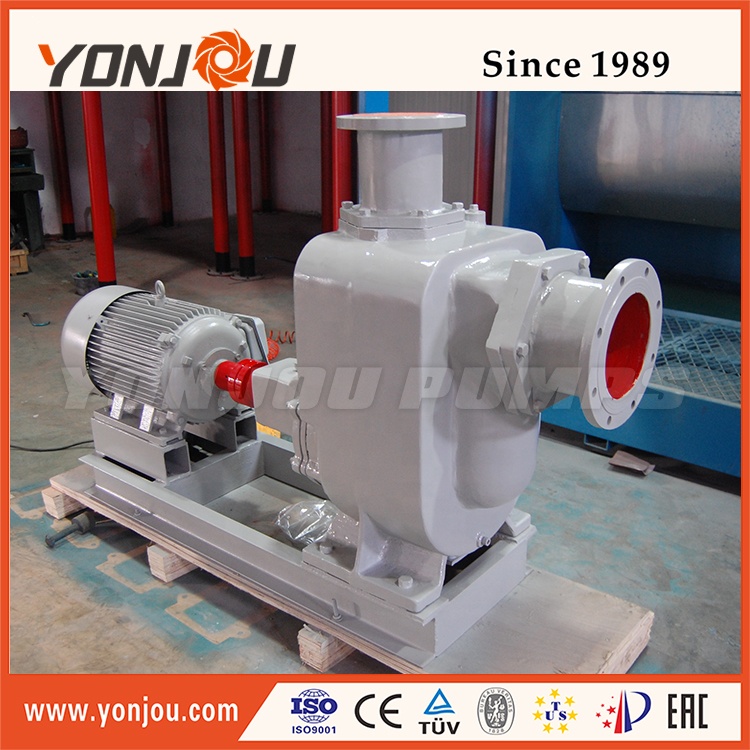

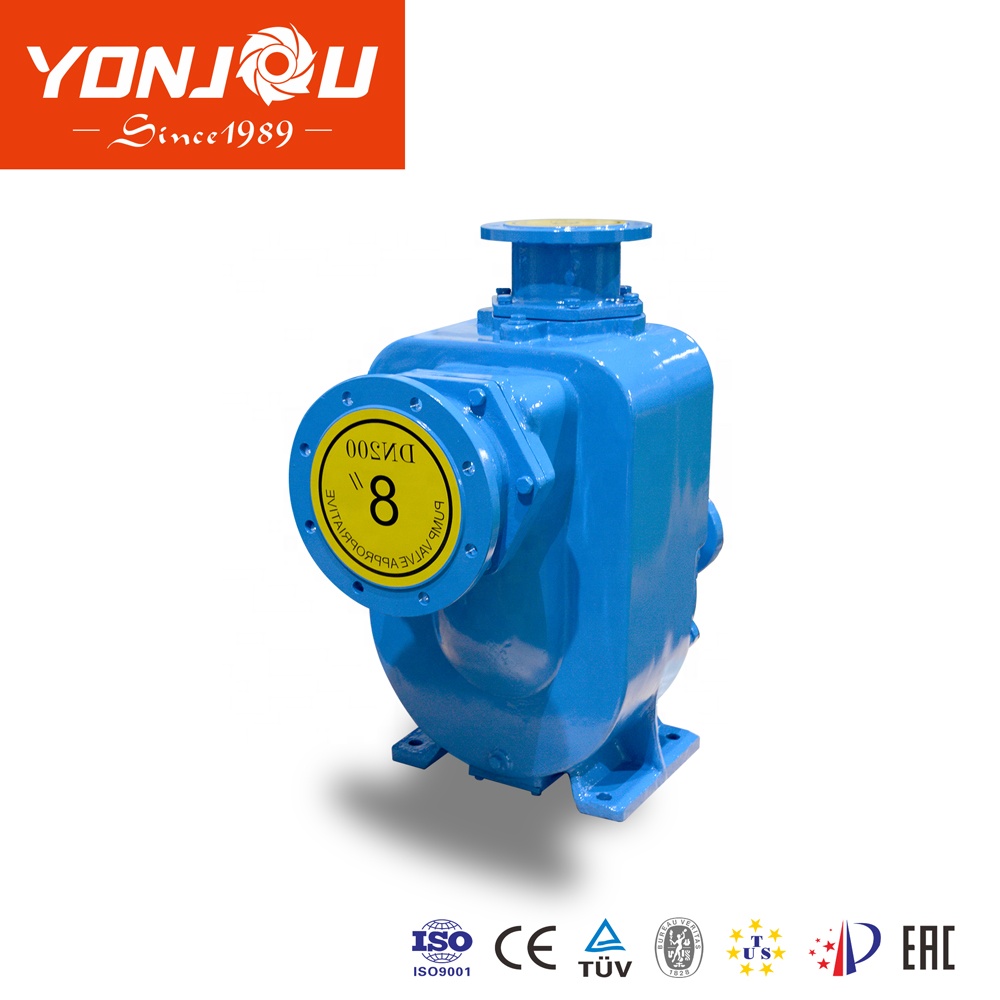

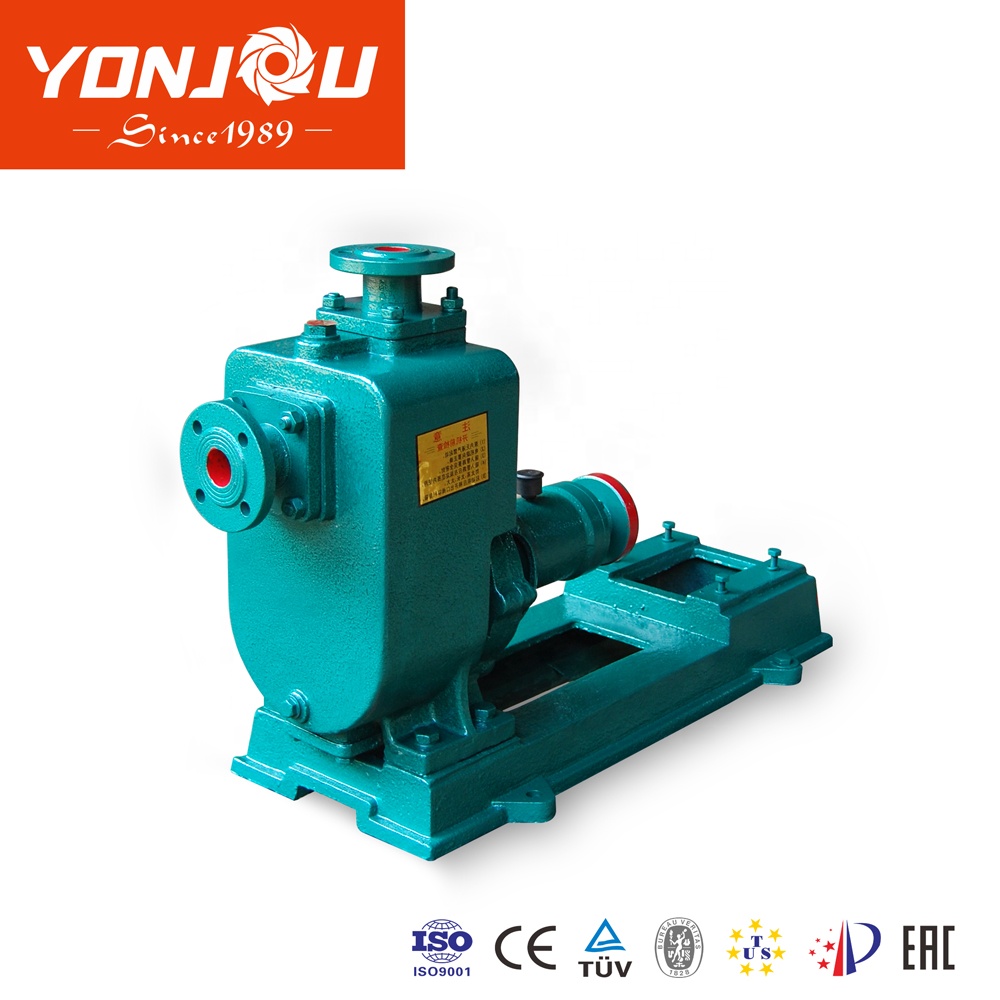

| Working Principle: | Centrifugal, Self-priming |
| Main applications: | Sewage with solids, dirty water |

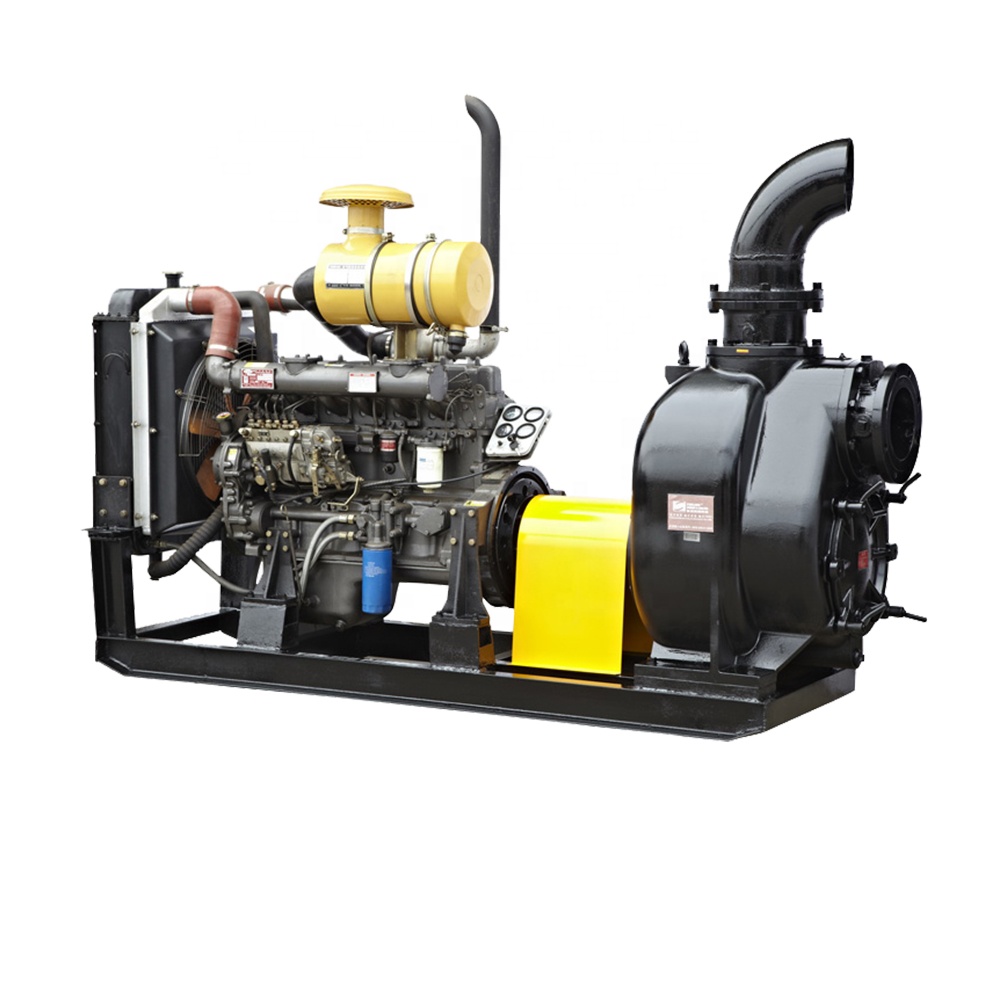

| Driver: | Electric motor, diesel engine |
| Power Specs: | 220/380/400/415 V 3phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing parts material: | Cast iron, Stainless steel |
| Shaft seal type: | Mechanical seal |
| Maximum grain diameter: | 15-170mm |
| Maximum fiber length: | 120-2000mm |
| Maximum viscosity: | 1×104C.S.T |
| Maximum drive rating: | 55KW(75HP) |
| Maximum caliber: | 300mm(12inch) |
| Maximum discharge-side pressure: | 0.8MPa(8bar) |
| Maximum head: | 80m(262.4ft) |
| Flow rate range: | 8-800m3/h(35.2-3520US.GPM) |
| Model | Capacity | Power | Head | Speed | Suction | Maxgrain dia. | Maxfiber len. | Pressure (MPa) |
|---|---|---|---|---|---|---|---|---|
| (m3/h) | (KW) | (m) | (r/min) | (m) | (mm) | (mm) | ||
| 25ZW8-15 | 8 | 1.5 | 15 | 2900 | 5.5 | 15 | 120 | 0.1-0.18 |
| 32ZW10-20 | 10 | 2.2 | 20 | 2900 | 5.5 | 20 | 150 | 0.15-0.25 |
| 40ZW15-30 | 15 | 3 | 30 | 2900 | 5.5 | 25 | 230 | 0.24-0.32 |
| 50ZW10-20 | 10 | 2.2 | 20 | 2900 | 5.5 | 30 | 250 | 0.15-0.25 |
| 65ZW30-18 | 30 | 4 | 18 | 2900 | 5.5 | 40 | 380 | 0.13-0.20 |
| 80ZW40-16(2) | 40 | 4 | 16 | 2900 | 5.5 | 50 | 400 | 0.11-0.18 |
| 80ZW50-60 | 50 | 22 | 60 | 2900 | 5.5 | 50 | 400 | 0.55-0.65 |
| 100ZW100-15 | 100 | 7.5 | 15 | 1450 | 5.5 | 60 | 500 | 0.1-0.18 |
| I00ZW80-80 | 80 | 45 | 80 | 2900 | 5.5 | 60 | 500 | 0.75-0.82 |
| 125ZW120-20 | 120 | 15 | 20 | 1450 | 5.5 | 80 | 750 | 0.13-0.22 |
| 150W200-15 | 200 | 15 | 15 | 1450 | 5.5 | 80 | 750 | 0.1-0.18 |
| 150ZW200-20 | 200 | 22 | 20 | 1450 | 5.5 | 80 | 750 | 0.15-0.25 |
